MASTER HEV
DIAGNOSIS AND REPAIR
WITH CONFIDENCE.

HEVs are showing up in more bays than ever before, and for many technicians, they bring a mix of opportunity and uncertainty. Different systems. New components. High‑voltage safety. It’s a lot to take in — but you’re not starting from scratch.

With the latest Snap‑on software release, you’re equipped with the coverage, data, and guided functions needed to tackle evolving vehicle technology with confidence.

And as these vehicles continue to grow in the market, the right diagnostic tool helps you stay ready — not left behind.

UNDERSTANDING HOW
HEV SYSTEMS OPERATE.

Squashing a common misconception: Many technicians believe HEVs are difficult to diagnose because you can’t scope high‑voltage circuits. And while it’s true that HV components require specialized training and safety procedures, that doesn’t mean HEVs are harder to diagnose — or that you should avoid them.

Modern HEVs are built around software, data, and coordinated control modules, which means a large percentage of real‑world faults are identified and resolved through your scan tool, not by probing high‑voltage circuits.

Many HEV issues are:

  • Logic‑driven
  • Cleared or corrected through scan‑tool resets, calibrations, and functional tests

Aside from the HV hardware, HEVs operate the same core vehicle systems you’re used to working on, including:

  • Body controls
  • ADAS
  • HVAC
  • ABS/ESC & chassis systems
  • Steering and braking modules
  • TPMS
  • Network communication (CAN/LIN)
  • Infotainment & instrument cluster

WANT THE FULL BREAKDOWN?

Dive deeper into our HEV Technical Focus Article at the link below

Coming Soon

HEV NEW FEATURES
SPOTLIGHT.

Snap‑on diagnostic software continues to evolve, giving you the coverage, capability, and guided intelligence you need to service and repair HEVs with confidence.

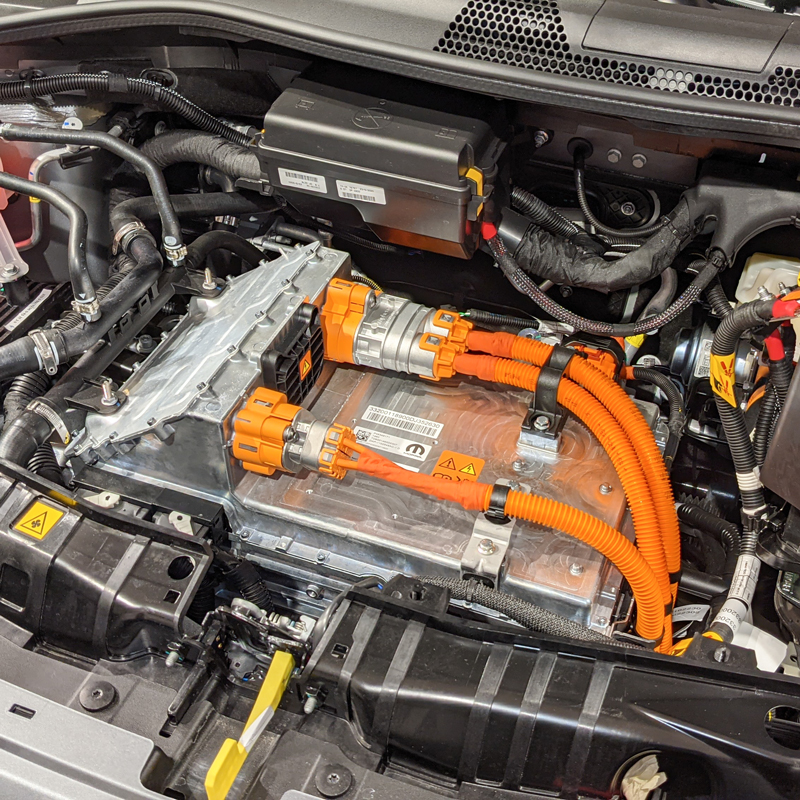

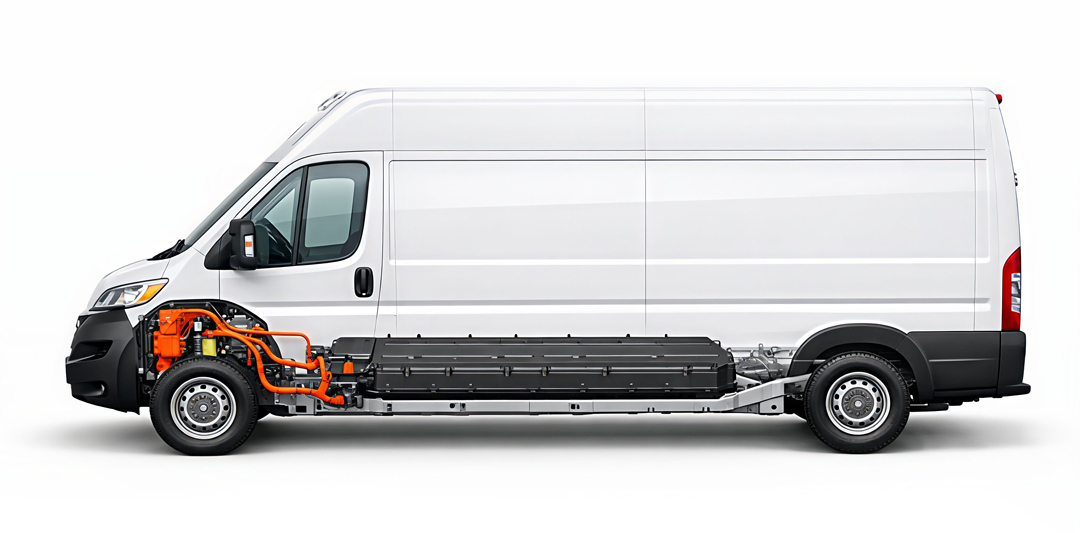

RAM® PROMASTER
2024-2025:
NEW BPCM FUNCTIONALITY

The latest software release brings powerful new functionality for the RAM ProMaster Battery Pack Control Module (BPCM), essential after HV repairs, module replacements, or electrical faults.

  1. Enable High‑Voltage Battery Contactors
  2. HVB Cell Voltage Difference Fault Reset: Clears P0BBD‑00
  3. HVB Impact Event Reset: Clears P167B‑00
  4. HVB Isolation Fault Reset: Clears P0AA6‑00 and P0AA8‑00
  5. Isolation Test — battery pack or full HV system
  6. Stuck Contactor Fault Resets: Clears P0AAA1‑00, P0AAA4‑00, P0D08‑00, P0D0F‑00

For the most detailed and accurate information on the latest software release, click the link below.

See what's hot in the latest software release

SECURE GATEWAY ACCESS

Snap-on diagnostic tools seamlessly integrate with these manufacturers' secure vehicle gateways - at no additional cost!

1Chrysler,® 1Dodge,® 1Jeep,® 1RAM,® Volkswagen,® Audi,® 1Mercedes-Benz,® 1Nissan,® Volvo,® Ford,® Hyundai,® Kia.®

1 AutoAuth account and subscription required by the Manufacturer

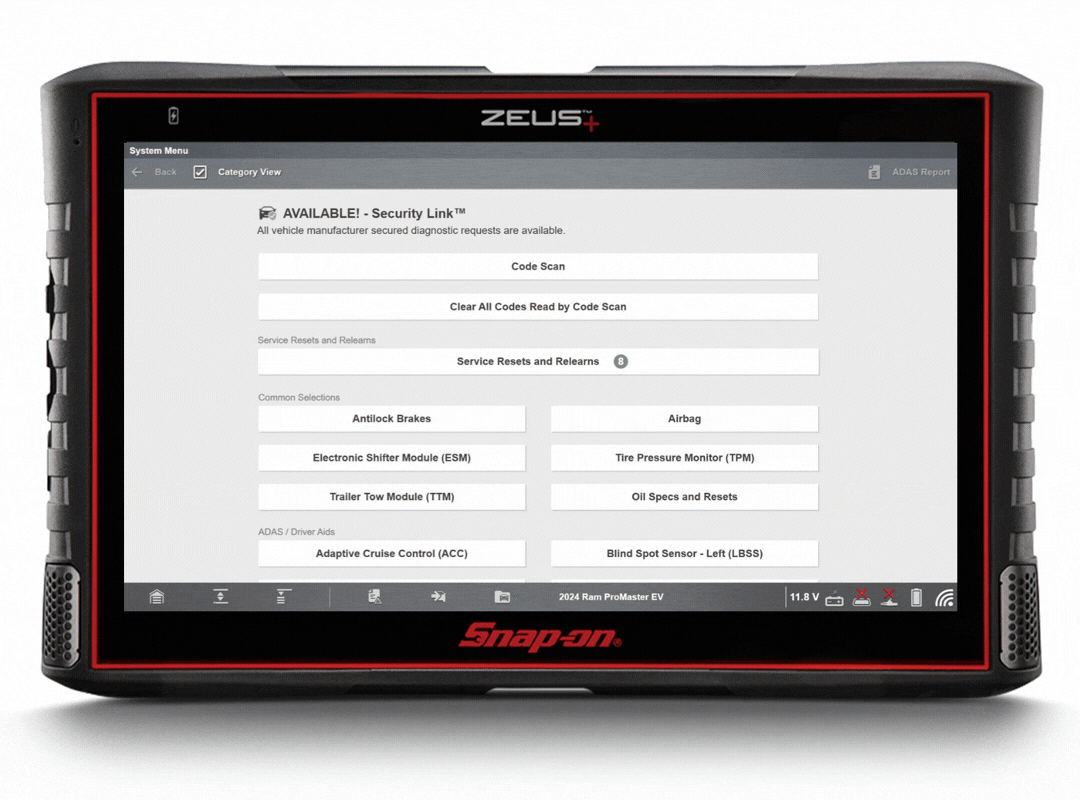

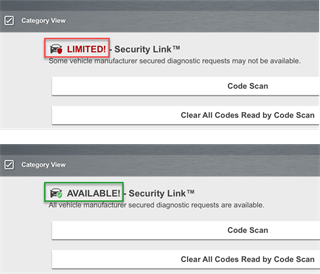

Ensure your tool is connected to Wi-Fi® and your Security Link™ services are connected, enabling seamless access to the secure vehicle network.

Need help setting up Security Link?

Click here for the full guide

A DEEPER DIVE INTO
HEV DIAGNOSIS
AND REPAIR

Want the full breakdown of EV construction, hybrid system types, high‑voltage safety, battery control, inverter operation, resolver functions and more? Our HEV Operation, Diagnosis and Repair, Technical Focus Article walks you through:

  • EV & Hybrid architecture
  • Battery management and monitoring
  • High‑voltage safety practices
  • Motor, inverter, and thermal systems
  • Hybrid powertrain types
  • Component testing
  • Case studies, including RAM ProMaster BPCM and Tesla

A closer look at what your Snap‑on tool can really do with the latest software release.

Coming soon

TRAINING
CONTENT

For a detailed, technician‑focused deep dive into HEV Diagnosis and Repair, watch Jason Gabrinas' Snap‑on live training episode 114.

This session gives you a deep dive into HEV systems, explains terminology and diagnostic strategies to get the most out of your scan tool.

Watch Episode 114
Subscribe to the channel
Watch video
Watch video

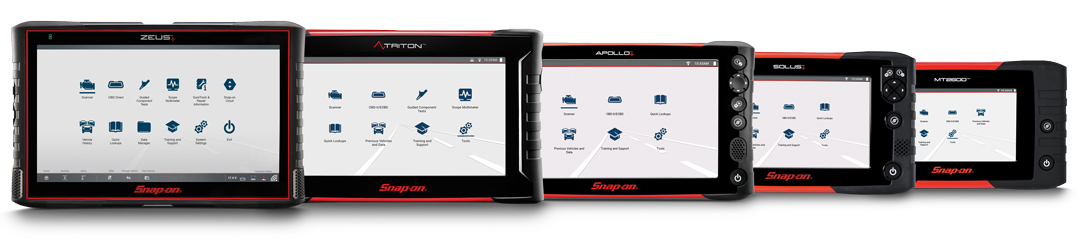

DISCOVER THE
POWER INSIDE
YOUR DIAGNOSTIC PLATFORM.

To cut through the complexity, Patented Fast-Track® Troubleshooting workflow and filtered information bring focus to the specific vehicle and code you’re working on, including:

  • SureTrack® Top Repairs Graph
  • Real Fixes
  • Technical Bulletins
  • Smart Data
  • Functional Tests and Resets
  • Complete Code Scan
  • Guided Component Tests
  • Service Resets and Relearns
For more information click here

ONLINE VEHICLE
COVERAGE GUIDE.

Coverage for 50 manufacturers and expanding with every upgrade

The latest software release gives your diagnostic tool new model year updates, guided tests, and thousands of SureTrack® Real Fixes and PID Flags.

Continuously updated cloud resources provide proven repairs, verified parts, and the industry’s broadest coverage.

With manufacturer-level capabilities, consistent navigation, and fast access to key specifications, Snap-on® keeps you ready to tackle even the toughest jobs.

View the online vehicle coverage guide

Need to Upgrade?

Purchase A Software Plan

Keep your tool performing at its best. Software options help you diagnose problems faster and tackle even the toughest repairs with confidence. Click below for more information or contact your Snap-on® Franchisee for the latest software deals.

Make a software inquiry

Already a Subscriber?

Download the Latest Software

If you are a software subscriber, purchased a prepaid plan or participated in a free software offer, you can perform your own software installation by downloading the latest software release through the ShopStream® Self-Service application, quickly and easily.

Download the latest software

*some exceptions apply. For more information explore our online vehicle coverage guide
