THE EVAP EDGE:
EXPERIENCE THE POWER OF THE LATEST SOFTWARE.

Modern vehicles rely on the Evaporative Emission Control (EVAP) system to prevent harmful fuel vapours from escaping into the atmosphere.

Instead of being lost, vapours are captured, stored, and later burned in the engine. Understanding how these systems work – and how to test them – is vital for accurate, efficient diagnostics.

EVAP problems are one of the highest-occurrence issues and remain a leading cause of comebacks. Having thorough coverage and knowing why this matters across the board can take the stress out of EVAP issues.

Discover what’s hot in the latest diagnostic software release and see how we’ve got your back with dedicated EVAP content, giving you the critical repair information you need to diagnose and repair with confidence.

COMMON
EVAP
ISSUES.

  • Blocked vent lines: often caused by dirt or debris restricting airflow.
  • Corroded or contaminated vent valves: commonly affected by road salt, moisture, and grime.

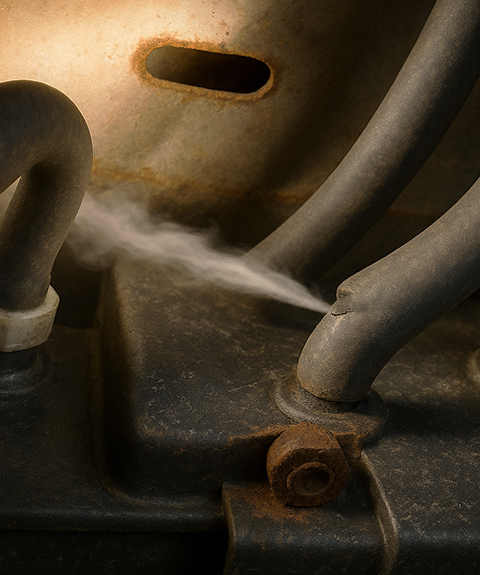

  • Cracked hoses, filler neck corrosion, or poor seals: leading to vapour leaks within the system.
  • Purge valve leaks: the Evaporative Emission Canister Purge Valve is a frequent cause of repeat EVAP issues.

It’s also important to recognise the difference between a leak-related DTC and an electrical fault. Mistaking one for the other can waste valuable diagnostic time and lead to unnecessary repairs.

See A Real-World Case Study

EVAP
TESTING
METHODS.

Leak Testing: Smoke Machines

The fastest way to locate and measure leaks, making invisible vapour losses visible. The Snap-on® Smart Smoke® EVAP Machine makes testing for leaks much easier.

Trouble codes include:PO440 - EVAP Problem, PO442 - Small Leak, P0455 - Gross leak, PO456 - Very Small Leak, PO457 - Gas Cap

Electrical Testing: Scan Tool Functional Tests

Activate purge and vent valves, monitor sensor responses, and run automated OEM EVAP routines.

Trouble codes include: PO443 - Purge Control, PO446 - Vent Control, PO452 - Pressure Sensor, PO487 - Purge Solenoid

Diagnosing these trouble codes is now easier than ever — explore real-world EVAP challenges below and see how the latest software speeds up repairs.

Diagnostic Quick-Tip: EVAP Purge Solenoid Test

WHAT'S HOT FOR EVAP IN THE
LATEST SOFTWARE RELEASE.

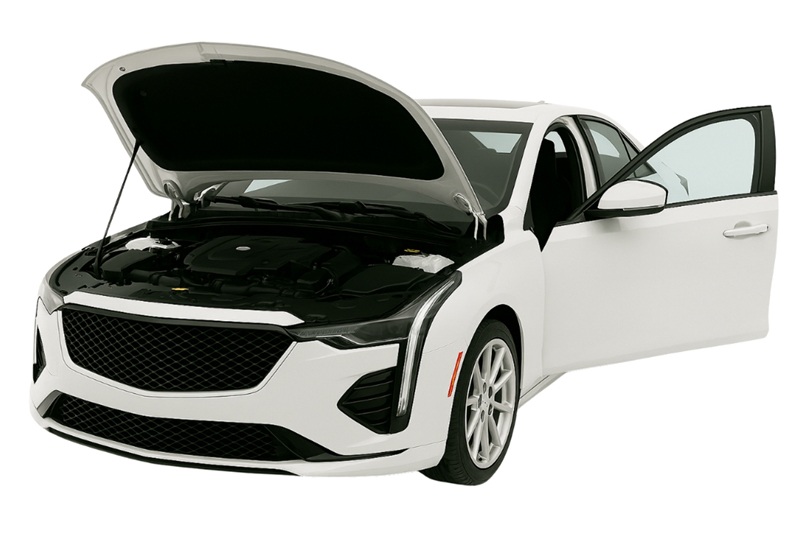

2024 CADILLAC® CT4
EVAP PURGE VALVE
LEAK TEST.

EVAP faults are among the most common causes of repeat visits, often triggered by leaks, faulty purge valves, or blocked vent lines.

Take the stress out of EVAP diagnostics with the latest Snap-on® Diagnostic Software release. It delivers expanded coverage, guided workflows, and exclusive functionality — including the new Evaporative Emission Canister Purge Valve Leak Test for the 2024 Cadillac CT4.

This targeted test makes it simpler and faster to confirm purge valve integrity, helping you prevent one of the most frequent causes of EVAP-related comebacks.

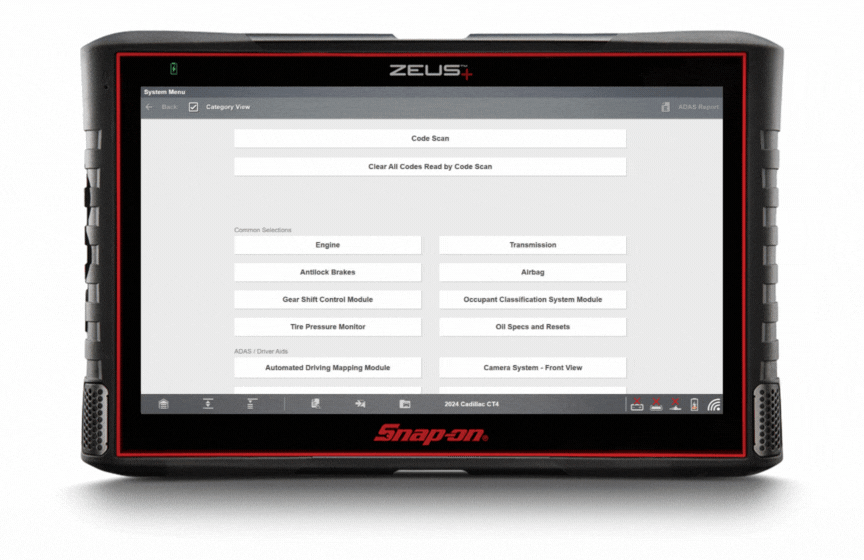

Operational Steps:

  1. From the Vehicle Systems Menu, select Engine.
  2. Select Functional Tests.
  3. Choose Evaporative Emission Canister Purge Valve Leak Test.
  4. Select Venting (open) or Not Venting (closed).
  5. The software holds the valve in the selected state for 30 seconds.
  6. Test complete.
Take a Deeper Dive into EVAP Operation and Testing

TOYOTA® EVAP
PURGE SOLENOID TEST.

Testing the EVAP Purge Solenoid on a Toyota® Camry is easier than ever with the latest Snap-on® Diagnostic Software.

Take a look at this quick-tip video for a step-by-step guide and get straight to the fix.

Watch Video

MAZDA® 6 VENT VALVE
SPIDER BLOCKAGE.

Issue Overview: Mazda® 6 vehicles with the 2.5L engine (14 Sept 2009 – 2 May 2011) were affected when golden orb-weaver spiders could weave webs in the evaporative canister vent line.

Impact: Blocked vent lines can cause excessive negative fuel tank pressure during purging, potentially cracking the tank and leading to a fuel-lean condition with increased fire risk.

Recall: Mazda® issued safety and emissions recall 7214C for this issue.

Snap-on® Advantage: With Fast-Track® Intelligent Diagnostics, see all TSBs, recalls, and OEM campaigns related to the specific vehicle and code you're working on — no hours of searching through hundreds of documents required.

Take a Deeper Dive into EVAP Operation and Testing

TAKE A DEEPER DIVE
INTO EVAP SYSTEM OPERATION AND TESTING.

EVAP issues remain a leading cause of comebacks, costing both time and revenue. Snap-on® Diagnostic Software provides comprehensive system coverage, guided tests, integrated repair information, and exclusive tools to simplify even the most complex EVAP challenges.

With continuous software updates, you’ll maintain up-to-date coverage across every model year, access manufacturer-level codes, live data, advanced graphing, and essential specifications—all helping you diagnose and fix issues faster while reducing repeat visits.

Dive deeper in our technical focus article to explore real-world EVAP challenges, step-by-step procedures, and how the latest software puts you in control of diagnostics and repairs.

Take a Look

DISCOVER THE
POWER INSIDE

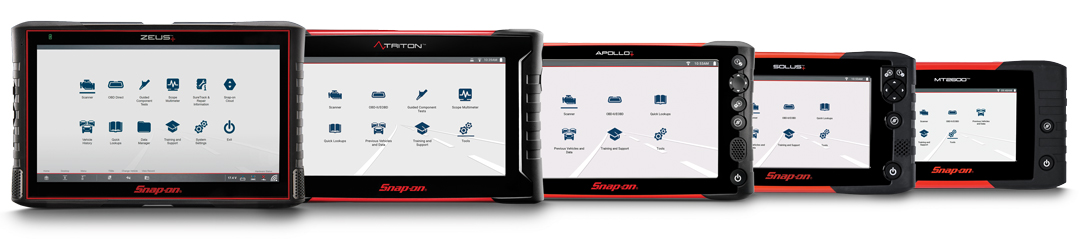

YOUR DIAGNOSTIC PLATFORM.

To cut through the complexity, Patented Fast-Track® Troubleshooting workflow and filtered information bring focus to the specific vehicle and code you’re working on, including:

  • SureTrack® Top Repairs Graph
  • Real Fixes
  • Technical Bulletins
  • Smart Data
  • Functional Tests and Resets
  • Complete Code Scan
  • Guided Component Tests
  • Service Resets and Relearns
Learn more about software exclusives

ONLINE VEHICLE
COVERAGE GUIDE.

Coverage for 50 manufacturers and expanding with every upgrade

The latest software release gives your diagnostic tool new model year updates, guided tests, and thousands of SureTrack® Real Fixes and PID Flags.

Continuously updated cloud resources provide proven repairs, verified parts, and the industry’s broadest coverage.

With manufacturer-level capabilities, consistent navigation, and fast access to key specifications, Snap-on® keeps you ready to tackle even the toughest jobs.

View online vehicle coverage guide
