THE ULTIMATE TOOL FOR COMMERCIAL
VEHICLE MAINTENANCE AND REPAIR
VEHICLE MAINTENANCE AND REPAIR
Do you work with trucks, trailers, buses, light commercial, agricultural or road maintenance vehicles? If so, the Commercial Diagnostics Kit is the tool for you!
Engineered to perform advanced commercial vehicle diagnostics and maintenance tasks.

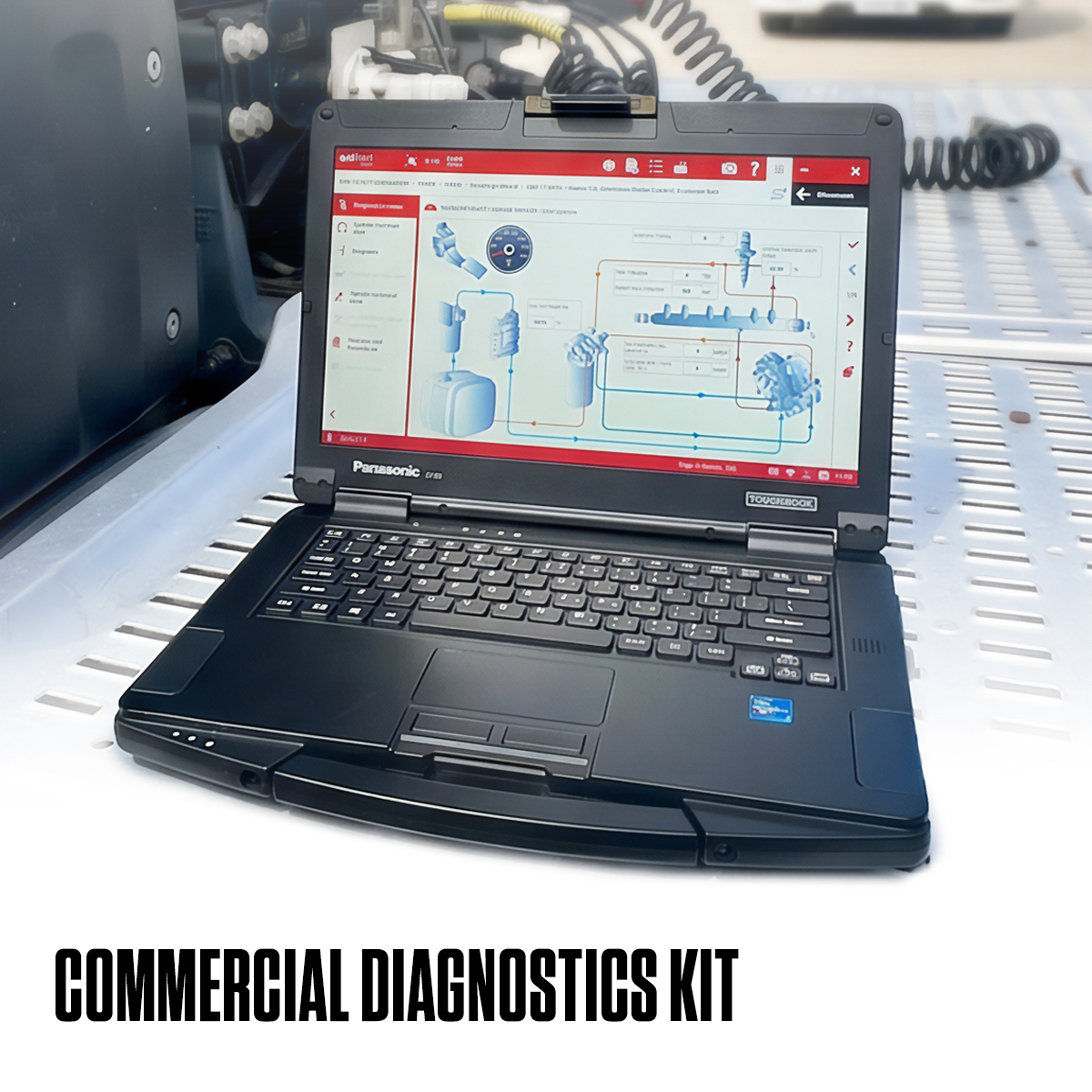

The Commercial Diagnostics Kit is an all-in-one guided diagnostics system that gives you the information you need to diagnose even the most complex jobs.
THE COMPLETE KIT FOR
COMMERCIAL DIAGNOSTICS
COMMERCIAL DIAGNOSTICS
The Commercial Diagnostics tool is designed to perform advanced vehicle diagnostics and maintenance tasks, ideal for heavy-duty vehicles including trucks, light commercial and Public Service Vehicles. See detailed information including error codes, ECU data, wiring diagrams and repair time estimations as well as perform functional tests and calibration of components.

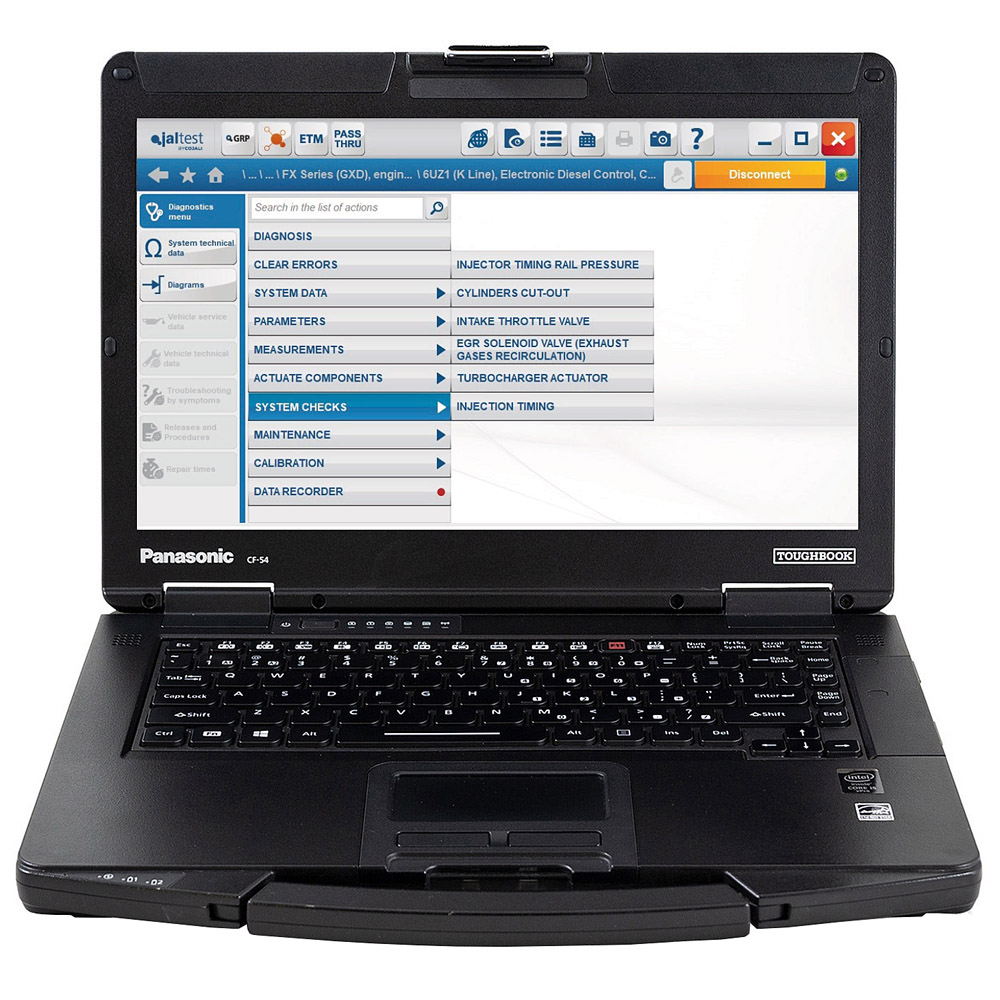

The Panasonic TOUGHBOOK® 54 is a 14” laptop built from the ground up as a rugged convertible device that is spill-resistant, and features a full magnesium alloy design. The Toughbook can be used at all times, even in extreme levels of damp, dust, heat, cold or vibration. The optimised display technology with extra low reflection rate ensures excellent clarity of display even in bright ambient light.
Key features:
- Military-grade, rugged PC, proven to withstand the rigours of a garage environment
- Liquid-resistant keyboard/touchpad
- Up to 20 hours of battery life
- Windows® 11 Pro

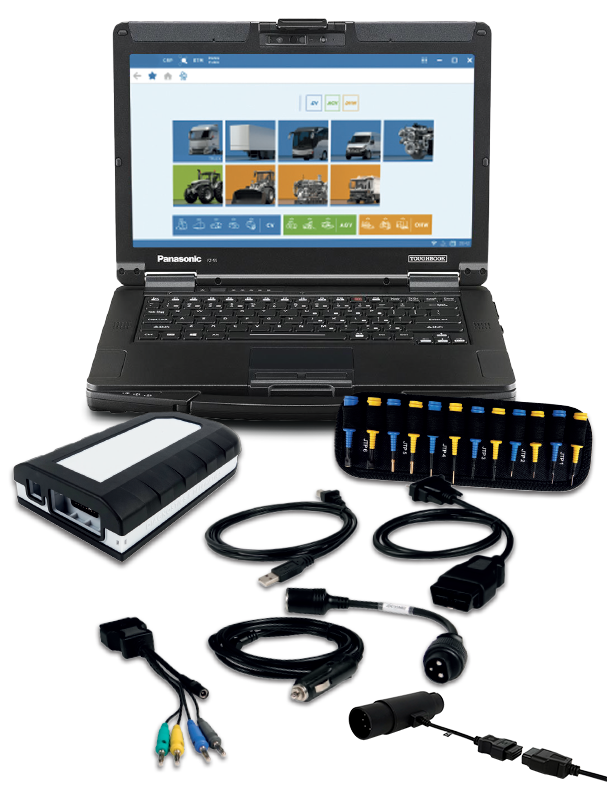

Also comes with:

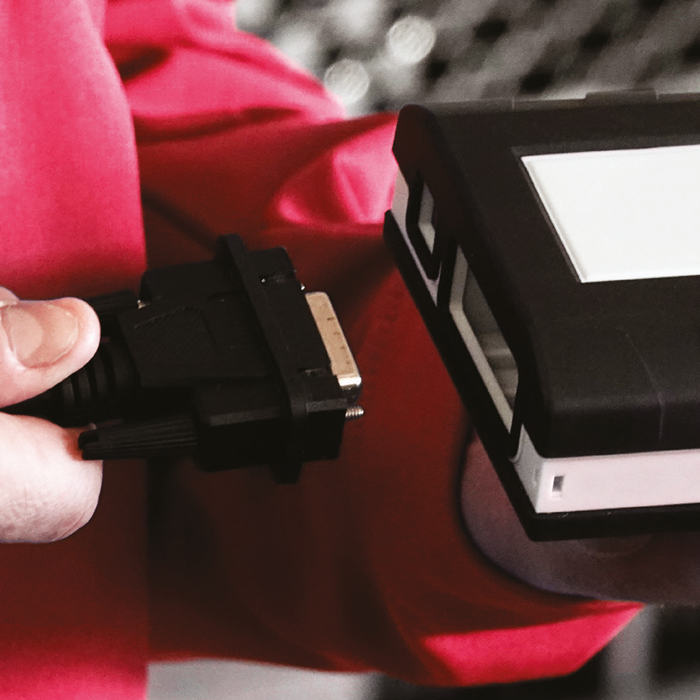

- LINK V9 interface - Lighter, Faster, More Powerful
- Vehicle and PC connection cables
- Electronic Test Module - this module allows you to check the operation of the many electronic modules used in commercial vehicles
- Optional cables and accessories are available, get in touch to find out more
COMMERCIAL
VEHCILE COVERAGE
VEHCILE COVERAGE
This commercial diagnostic tool for HGV & PSV, AGV, OHW, and MHE includes a guided diagnostics system, interactive wiring diagrams, and repair time estimation.
It provides detailed error code information, ECU data, and allows functional tests and component calibration for comprehensive repairs without dealer assistance. Lightweight yet robust, the updated system delivers optimal performance and durability.
Click the link below for the full vehicle coverage database.
SOFTWARE
CONFIGURATIONS AVAILABLE:
CONFIGURATIONS AVAILABLE:
COMMERCIAL VEHICLES
(HGV & PSV)
AGRICULTURAL VEHICLES†
(AGV)
Tractors and Harvesters
OFF HIGHWAY VEHICLES†
(OHW)
Construction and Road Maintenance Vehicles
MATERIAL HANDLING†
(MHE)
Forklifts, Telescopic Handlers & Lift Platforms
† Standard Configuration is Commercial Vehicle (HGV & PSV). Optional software configurations can be added for an additional fee. Your Snap‑on Sales Representative can provide full activation and pricing details.
SOFTWARE
FEATURES OVERVIEW
FEATURES OVERVIEW

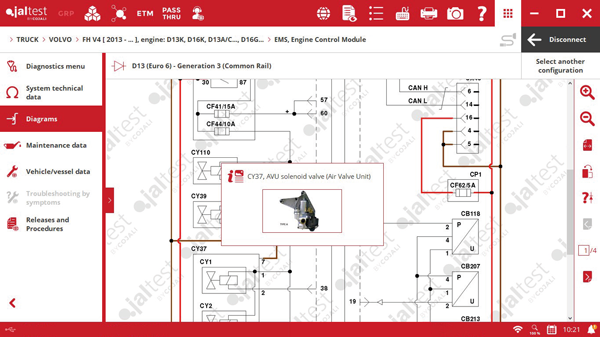

INTERACTIVE WIRING DIAGRAMS
Detailed diagrams show you how systems are configured and let you easily access technical data and advice to help speed up your diagnosis

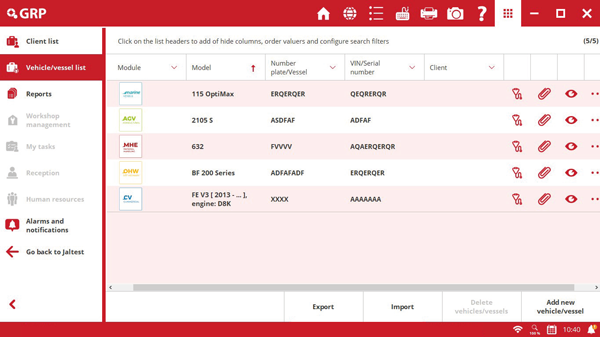

VEHICLE ID BY REGISTRATION PLATE
Access the history and data of a vehicle simply by entering its registration number, avoiding time-consuming searches

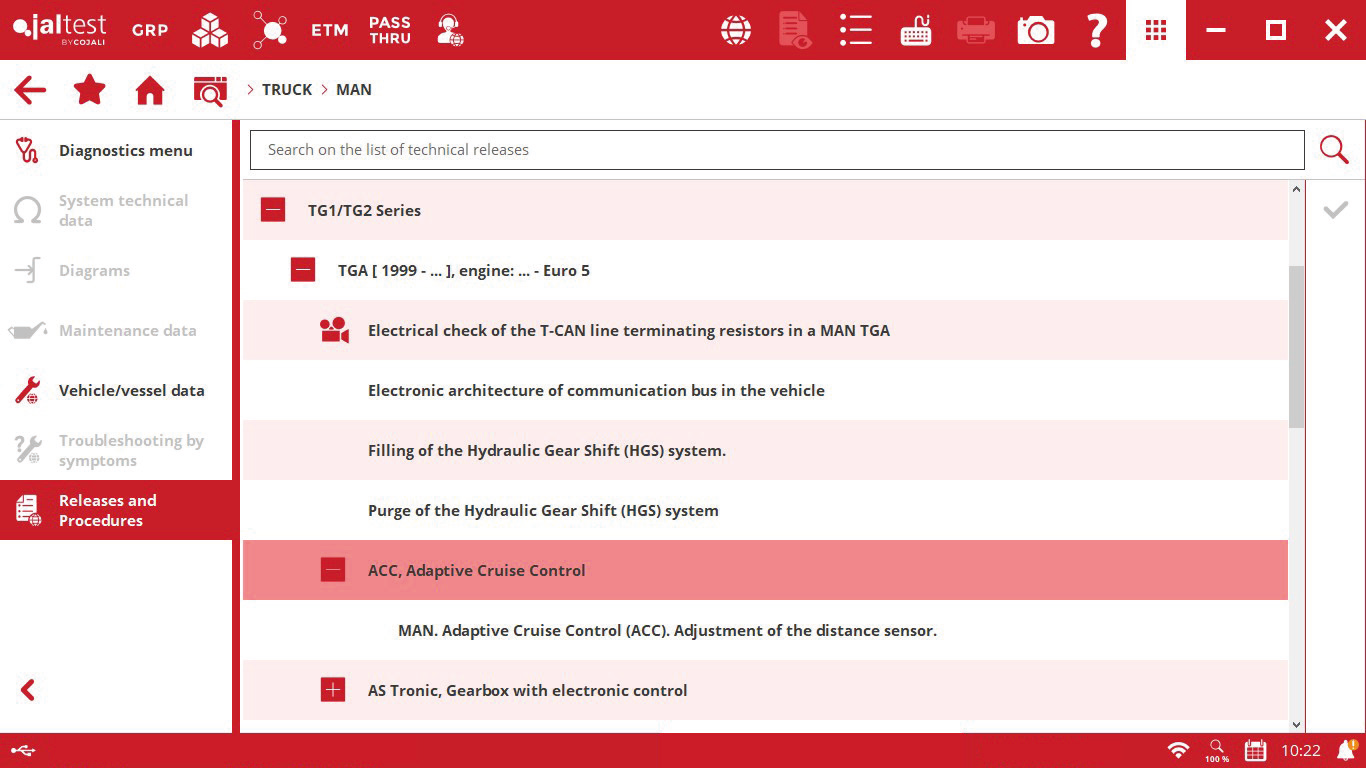

RELEVANT TECHNICAL DATA AND PROCEDURES
Frequently used vehicle data and procedures are grouped together for easy access

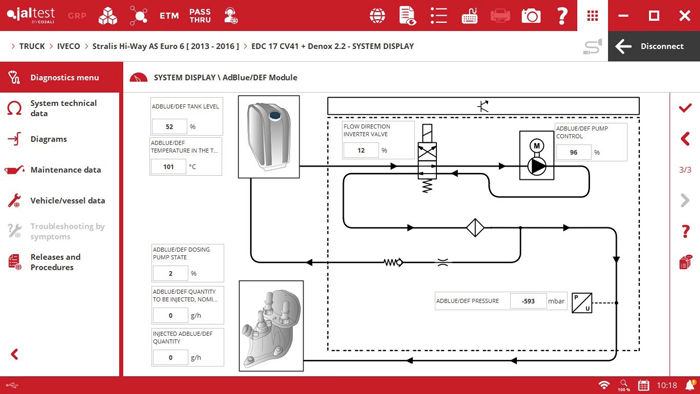

SYSTEM DISPLAY AND VIRTUAL INSTRUMENTS
Real-time data can be compared against known good measurements

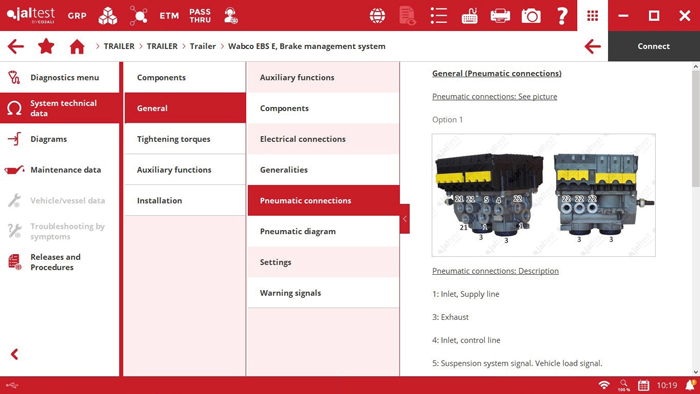

DETAILED TECHNICAL INFORMATION
Identify errors, parts, locations and more for every vehicle covered using images, diagrams, graphs and data
COMPONENT INFORMATION
Identify errors, parts, locations and more for every vehicle covered using images, diagrams, graphs and data
HARDWARE
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
- Processor Intel® Core i5 8365U vPro 1.6 to 4.1 GHz, Intel® Smart Cache 6MB
- OS Windows® 11 Pro
- Memory system 8GB (max. 64GB)
- Storage SSD 256GB
- Display Active Matrix (TFT) colour LCD and 14” 1366x768 pixels (HD)
- Graphics Intel® UHD Graphics 620
- Audio WAVE and MIDI, compatible with Intel® subsystem, High-Definition Audio
- Magnesium alloy design with built-in handle
- I/O Devices Micro SDXC memory card, TPM 2.0 chip, Touchpad with 2 buttons, Multi-touch support
- AC Adapters Input: 100V ~ 240V, 50Hz/60Hz; Output: 15.6V, 7.05A
- I/O Ports 2 x USB 3.1 1 x USB Type-C with Power Delivery 1 x LAN 1 x HDMI 1 x Headsets 1 x DC input
- Wireless/ Communications Bluetooth V5.0 + Wireless LAN 802.11ac
- Battery Lithium-ion of 10,8 V. 6500 mAh (tip.), 6300 mAh (min.).
- Battery life 20 hours approx. (Mobile Mark™ 2014)
- Size and weight 345mm x 272mm x 32.8mm 2.08kg
- Certification IPX3, IP5x
- Manufacturer warranty 1-year limited warranty. Battery: 6 months
| REPRESENTATIVE EXAMPLE | |
| Commercial Diagnostics with Panasonic Toughbook + 5-Year Software Updates | |
| List Price | £13,995.00 |
| Promo Price | £9,995.00 |
| VAT @20% | £1,999.00 |
| Sub-total | £11,994.00 |
| Interest | £4,947.53 |
| Number of weeks | 260 |
| Interest APR% | 16.04% |
| Weekly cost | £65.16 |
* The Snap-on® Finance UK Limited hire purchase program is for business purpose credit only All finance, rates and terms are subject to credit status and affordability approval at time of sale. Not all customers will qualify for credit, and not all customers will qualify for the representative example above. Payment amount based on purchase price of £11,994 over 260 weeks at an APR of 16.04%. Snap-on® Finance UK Ltd, registered in England and Wales - Company Registration number 332884. Registered Office Snap-on® Finance UK Ltd: Telford Way, Telford Way Industrial Estate, Kettering, Northamptonshire, NN16 8SN.
† Based on 2 wheel alignments per week at £65 per alignment, with payback achieved in approximately 65 weeks. Promotions are available until midnight 31st October 2026. Subject to VAT rate and stock availability. Snap-on® reserves the right to change, modify or cancel promotions any time without notice. ±Some exceptions may apply *Snap-on® Finance available - Qualifying customers only - terms and conditions apply. Full written details on request. Price, availability and specifications may change without notice. Errors and omissions excepted. Trademarks are the property of their respective registered proprietors. Authorised and regulated by the Financial Conduct Authority. Contact your Snap-on® representative for more information.
