DVSA-Approved Roller Brake Tester for HVG and PSV up to 20 Tonnes
The HOFMANN® connected roller brake tester for vehicle classes IV, V, and VII HGV and PSV. Classes IV, V and VII integrate the Authorised Testing Facility (ATF) with the DVSA MOT Testing System (MTS) via the PC workstation.
This cutting-edge equipment is fully compliant with the latest DVSA specifications and is backed by comprehensive support from Snap-on®, including hardware and software. Our team of GEA-accredited engineers will handle installation, calibration, and ongoing maintenance.
Important Update to ATF Brake Tester Specifications
The DVSA has rolled out new specifications for HGV/PSV brake testers at Authorised Testing Facilities (ATF). As per the mandate, all brake testers in use at ATF locations must be updated by 31st December 2025.
These changes aim to modernise the testing process, enhancing the interpretation of standardised results and printouts while improving usability and workflows to align with modern vehicle requirements.
Ensuring Compliance with the DVSA's Latest Roller Brake Testing Software Requirements for ATF’s
Why are these updates important?
The latest updates are significant enhancements to testing and road safety, which include:
Service Brake Efficiency Updates: The inclusion of drawbar trailers in service brake efficiency evaluations marks a significant stride towards comprehensive road safety. By expanding the scope of assessment, these updates address previously overlooked areas, ensuring that all aspects of vehicle braking systems meet stringent standards.
Refined Secondary Brake Performance Metrics: Secondary brake performance is a critical aspect of vehicle safety, especially in emergency braking situations. With updated metrics, regulators aim to provide a more accurate assessment of a vehicle's braking capabilities, thus enhancing overall safety on the roads.
Programmatic Adjustments to Prevent Tyre Damage: Tyre maintenance is essential for road safety and vehicle longevity. By implementing fundamental programme changes aimed at preventing tyre damage, the DVSA is taking proactive measures to mitigate risks associated with tyre-related incidents, such as blowouts or loss of control.
Streamlined Workflows for Consistent Brake Testing: Consistency in brake testing procedures is essential for ensuring accurate results and identifying potential safety issues promptly. The introduction of improved workflows enhances the efficiency and reliability of brake testing during both routine inspections and preventative maintenance checks.
Introduction of Advisory Elements for Preventative Maintenance: Incorporating advisory items into the testing process enables ATFs to address potential maintenance issues proactively. By offering guidance on broader preventative maintenance practices, these advisories empower vehicle owners and operators to uphold higher standards of safety and reliability.
Extending the Software Update Deadline: Recognising the financial implications of these upgrades, the DVSA has extended the software update deadline to 31st December 2025. This extension provides ATFs with the necessary time and flexibility to incorporate the costs into their business plans effectively, ensuring a smoother transition to compliance.

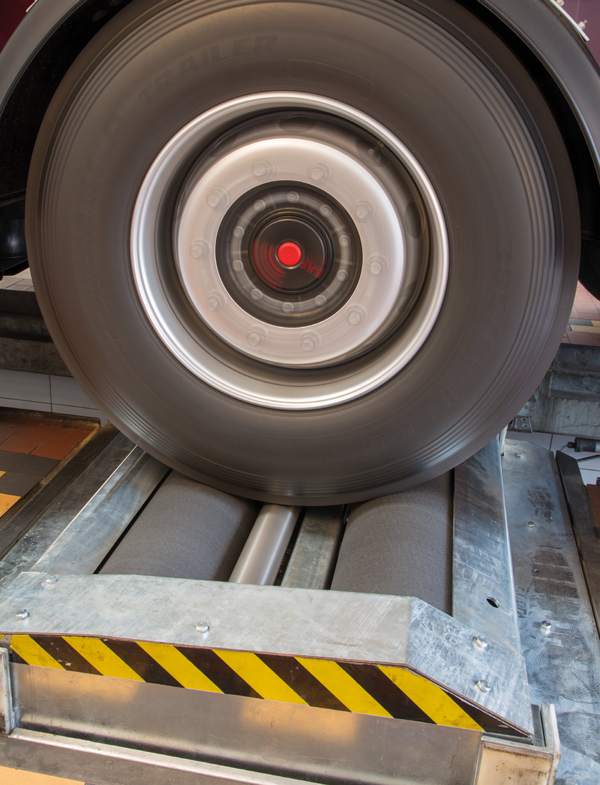

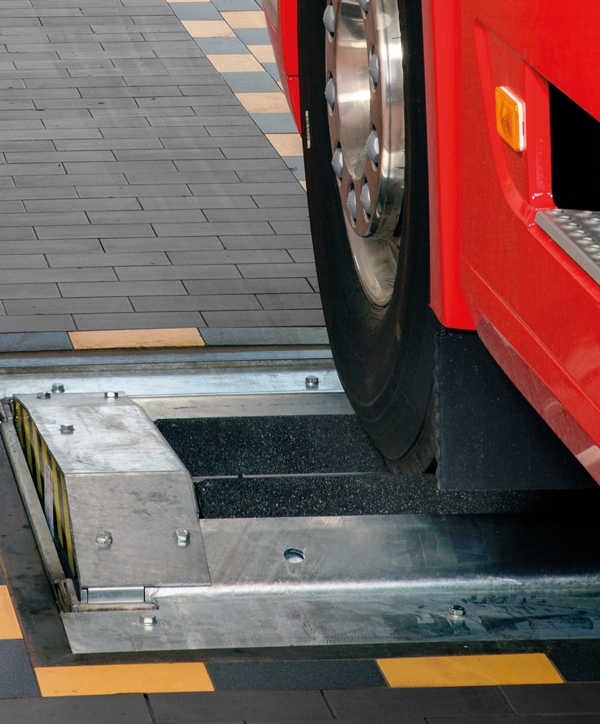

Hofmann® BR-20 Roller Brake Tester
Features include:
- DVSA-approved ATF system – designed for busy testing centres, covering HGV and PSV Classes IV, V, and VII up to 20 tonnes per axle
- Connected testing – seamless integration for Class IV passenger vehicles and Class VII light commercial vehicles with the DVSA MOT Testing System (MTS)
- The roller brake tester can additionally benefit from full connectivity to the geogas emissions analyser and decelerometer
- For all vehicles in both loaded or unloaded conditions
- Automatic mode
- Manual mode
- Ovality measurement
- Cut-out at wheel lock
- Display of braking force imbalance
- All motors have braking kits fitted as standard to aid drive out
- Rollers 1000mm length

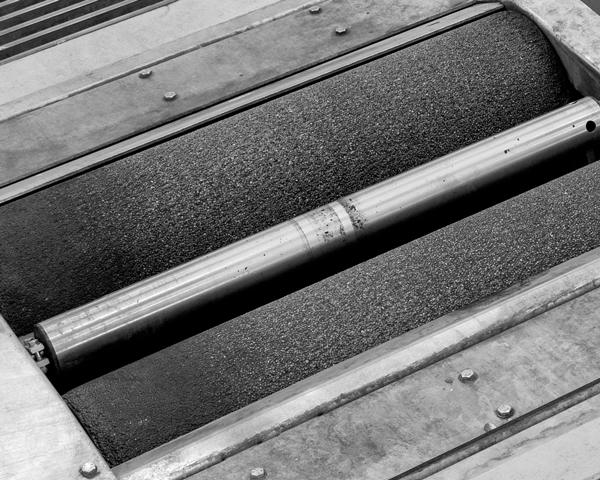

- Corundum coated (CRD) steel rollers with a wear-proof plastic coating eliminate wear to tyres during tests
- Drive off the rollers through electro brake or automatic aid
- Safety feature: The brake test does not start before both feeler rolls are depressed. This safety feature prevents unintentional starting of the brake tester
- Equipped with level rollers, bi-direction testing and 4WD mode as required
Contact your Snap-on® Sales Representative for more details. *Snap-on Finance available - Qualifying customers only - terms and conditions apply. Full written details on request. Price, availability and specifications may change without notice. Errors and omissions excepted. Trademarks are the property of their respective registered proprietors. Authorised and regulated by the Financial Conduct Authority. Contact your Snap-on representative for more information.
The Hofmann® BR-20 Roller Brake Tester Package Includes:

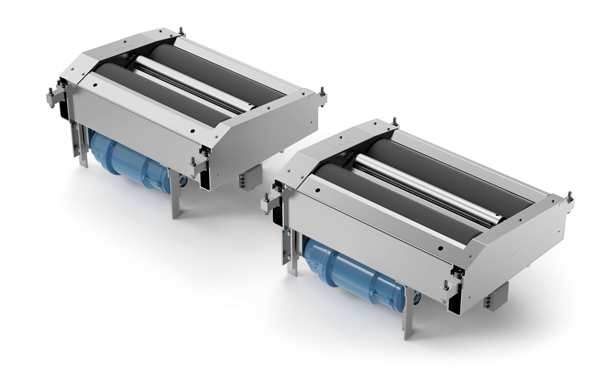

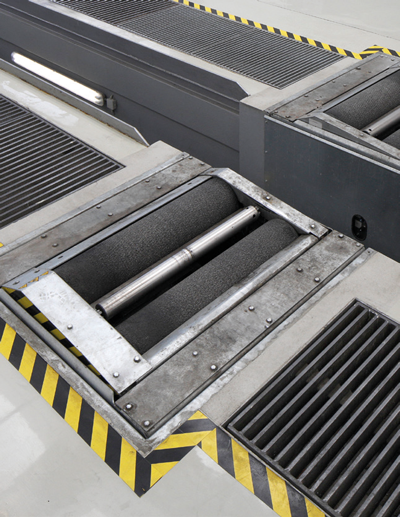

Roller Set
Available in two configurations
- Split system configuration
- Compact system configuration

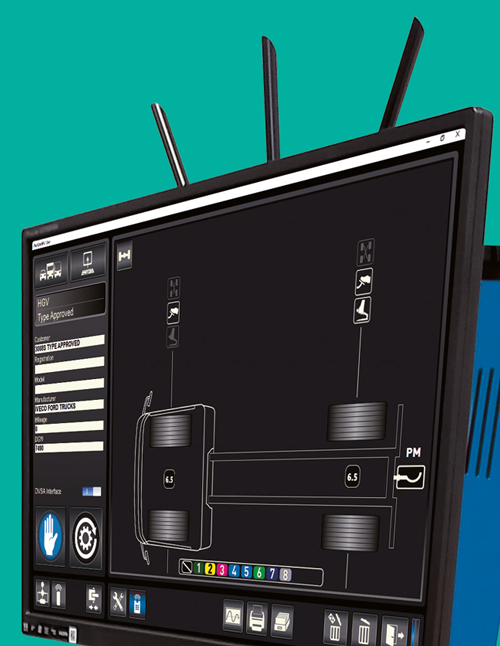

Workstation
Control the Hofmann roller brake tester with the Workstation with PC and primary 27” display
Differing functionalities are unlocked via USB dongles. As standard, the BR-20 is equipped with 1 speed + PC connection
Analogue Display

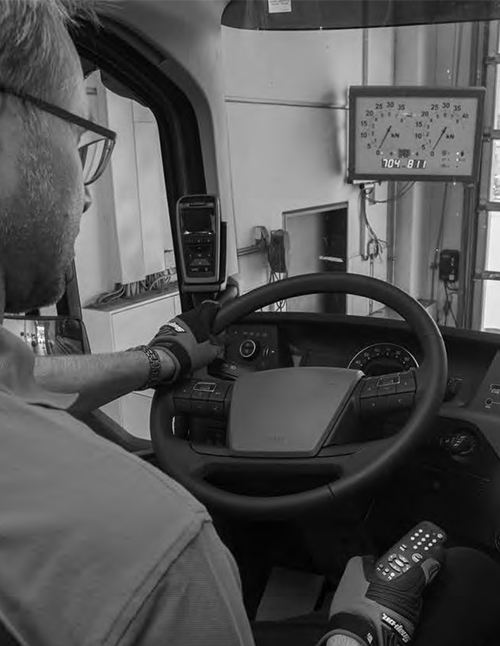

Needle dials provide a clear view of braking force from a distance. Up to three displays can be positioned for multiple testing setups. A handheld remote allows operation from the cab or elsewhere in the bay.

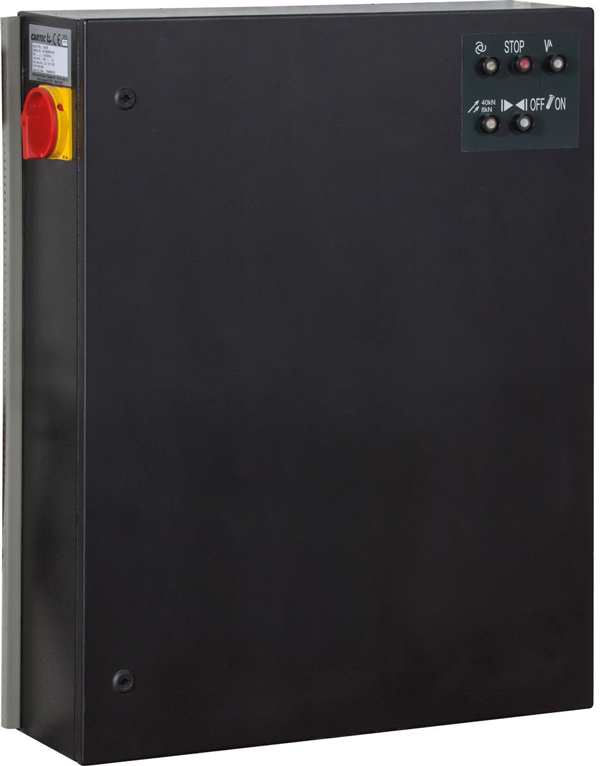

Control Unit
The control unit is the technological core of the equipment controlling all electronic components and includes the main switch, emergency stop function as well as controls for pneumatic pressure transducers. Includes portable emergency stop module and IR pit safety device (where pit installation is required)
Options and Accessories

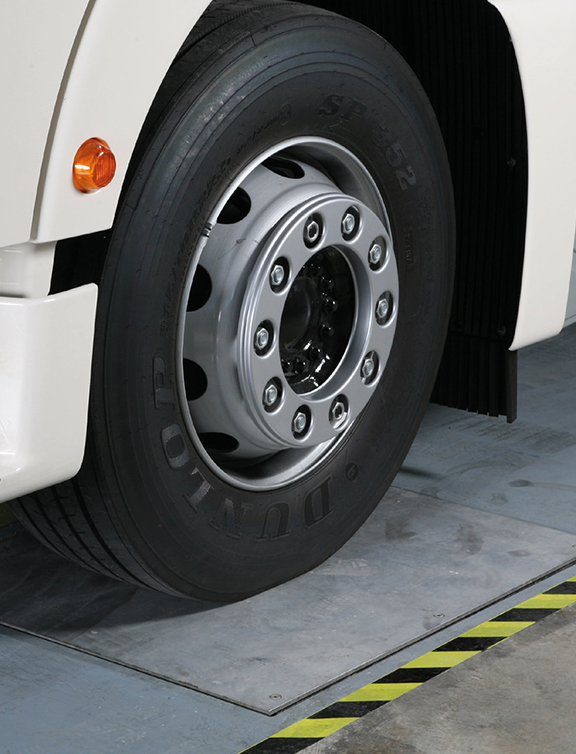

JOINT PLAY DETECTOR
The HOFMANN® Weartest 4600 FA Joint Play Detector, is the ultimate solution for assessing suspension and steering components in heavy goods vehicles (HGV) and public service vehicles (PSV) with axle loads of up to 20 tons.
LOAD SIMULATOR HBV 3000
The HBV 3000 hydraulic lifting system is approved for use with BR-20 systems (20 tonne) with 1000mm rollers
The scope of the HBV 3000 is to achieve the minimum of 30% of the design brake actuator, prescribed by the ISO 21067 as requirement for the reliability of the calculated braking force

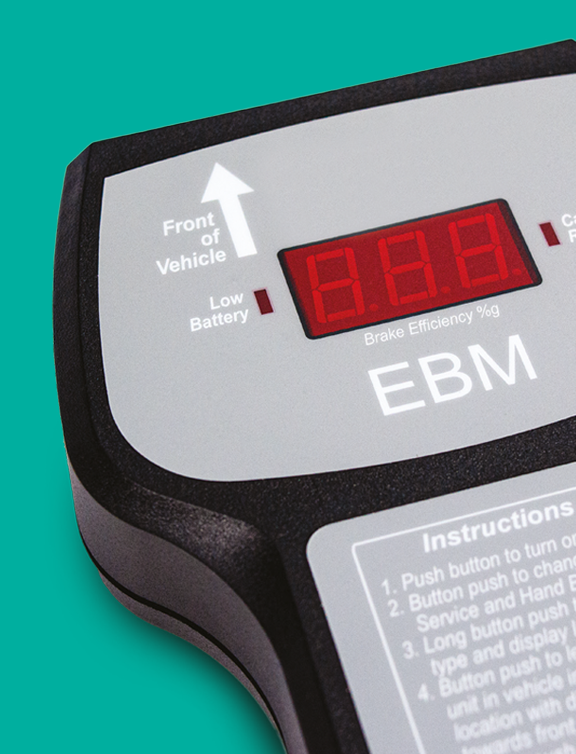

DECELEROMETER
- DVSA-approved for all classes
- A must have for most 4x4 vehicles that cannot be tested on a Roller Brake Tester
- Results easily downloaded to PC and sent directly to the DVSA's MTS Connected Network
