Do you work with trucks, trailers, buses, light commercial, agricultural or road maintenance vehicles?
If so, the Commercial Diagnostics Kit is the tool for you!
Engineered to perform advanced commercial vehicle diagnostics and maintenance tasks. The Commercial Diagnostics Kit is an all-in-one guided diagnostics system that gives you the information you need to diagnose even the most complex jobs.
Commercial Diagnostics Kit
The Commercial Diagnostics tool is designed to perform advanced vehicle diagnostics and maintenance tasks, ideal for heavy-duty vehicles including trucks, light commercial and Public Service Vehicles.
See detailed information including error codes, ECU data, wiring diagrams and repair time estimations as well as perform functional tests and calibration of components.
Software configurations available for a wide range of heavy-duty vehicles
COMMERCIAL VEHICLES
HGV & PSVs
AGRICULTURAL VEHICLES
Tractors and Harvesters
OFF HIGHWAY VEHICLES
Construction and Road Maintenance Vehicles
MATERIAL HANDLING EQUIPMENT
Including Forklifts, Telescopic Handlers and Lift Platforms
PANASONIC TOUGHBOOK® 54
The Panasonic TOUGHBOOK® 54 is a 14” laptop built from the ground up as a rugged convertible device that is spill-resistant, and features a full magnesium alloy design. The Toughbook can be used at all times, even in extreme levels of damp, dust, heat, cold or vibration. The optimised display technology with extra low reflection rate ensures excellent clarity of display even in bright ambient light.
- Military grade, rugged PC, proven to withstand the rigours of a garage environment
- Liquid-resistant keyboard/touchpad
- Up to 20 hours of battery life
- Windows® 11 Pro
Also comes with:
- LINK V9 interface
- Vehicle and PC connection cables
- Electronic Test Module - this module allows you to check the operation of the many electronic modules used in commercial vehicles
- Optional cables and accessories are available, get in touch to find out more
Military-grade, rugged PC
Technical specifications
- Magnesium alloy design with built-in handle
- Processor Intel® Core i5 8365U vPro 1.6 to 4.1 GHz, Intel® Smart Cache 6MB
- OS Windows® 11 Pro
- Memory system 8GB (max. 64GB)
- Storage SSD 256GB
- Display Active Matrix (TFT) colour LCD and 14” 1366x768 pixels (HD)
- Graphics Intel® UHD Graphics 620
- Audio WAVE and MIDI, compatible with Intel® subsystem, High-Definition Audio
- I/O Devices Micro SDXC memory card, TPM 2.0 chip, Touchpad with 2 buttons, Multi-touch support
- AC Adapters Input: 100V ~ 240V, 50Hz/60Hz; Output: 15.6V, 7.05A
- I/O Ports 2 x USB 3.1 1 x USB Type-C with Power Delivery 1 x LAN 1 x HDMI 1 x Headsets 1 x DC input
- Wireless/ Communications Bluetooth V5.0 + Wireless LAN 802.11ac
- Battery Lithium-ion of 10,8 V. 6500 mAh (tip.), 6300 mAh (min.).
- Battery life 20 hours approx. (Mobile Mark™ 2014)
- Size and weight 345mm x 272mm x 32.8mm 2.08kg
- Certification IPX3, IP5x
- Manufacturer warranty 1-year limited warranty Battery: 6 months

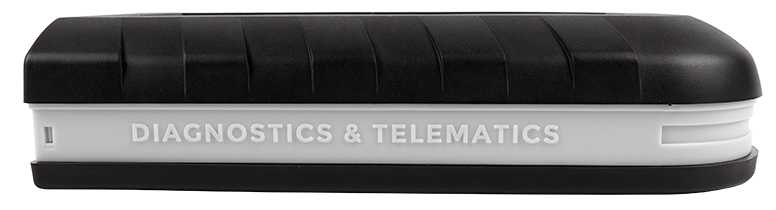

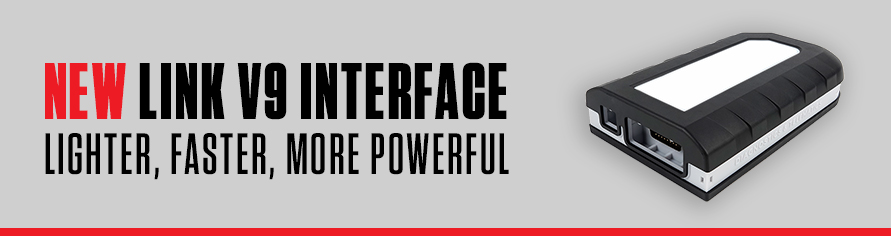

NEW AND IMPROVED V9 INTERFACE
FASTER CONNECTION RATE: Improved performance and communication with a speed increase in the data transfer and processing, both in VCI-PC and VCI-system
ENHANCED COMMUNICATION CAPABILITIES: Greater connectivity, new supported communication protocols and extended multiplexor
IMPACT PROTECTION: Features a durable covering that cushions minor impacts, guards against scratches, and allows for a secure seal closure of the device, preventing the ingress of dirt and water (IP40)
COMPACT AND LIGHT: Reduced weight, the LINK V9 Interface is 76% lighter than previous models
Commercial Vehicle Coverage
This commercial diagnostic tool for HGV, PSV, OHW, AGV, and MHE includes a guided diagnostics system, interactive wiring diagrams, and repair time estimation.
It provides detailed error code information, ECU data, and allows functional tests and component calibration for comprehensive repairs without dealer assistance. Lightweight yet robust, the updated system delivers optimal performance and durability.
Click the link below for the full vehicle coverage database.
SOFTWARE WITH EASY, INTUITIVE AND VISUAL NAVIGATION
INTERACTIVE WIRING DIAGRAMS
Detailed diagrams show you how systems are configured and let you easily access technical data and advice to help speed up your diagnosis
VEHICLE ID BY REGISTRATION PLATE
Access the history and data of a vehicle simply by entering its registration number, avoiding time-consuming searches
RELEVANT TECHNICAL DATA AND PROCEDURES
Frequently used vehicle data and procedures are grouped together for easy access
SYSTEM DISPLAY AND VIRTUAL INSTRUMENTS
Real-time data can be compared against known good measurements
DETAILED TECHNICAL INFORMATION
Identify errors, parts, locations and more for every vehicle covered using images, diagrams, graphs and data
ADBLUE
Quickly get to the root of common problems with surrounding air supply valves, blocked exhaust injectors, and temperature sensors
Speak to your Snap-on® Franchisee or Technical Representative for More Information
